CLM Pro Fuselage set #120 suitable for wingspan up to 2 meters / 79".

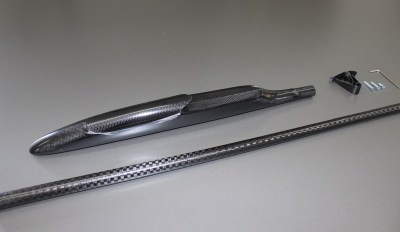

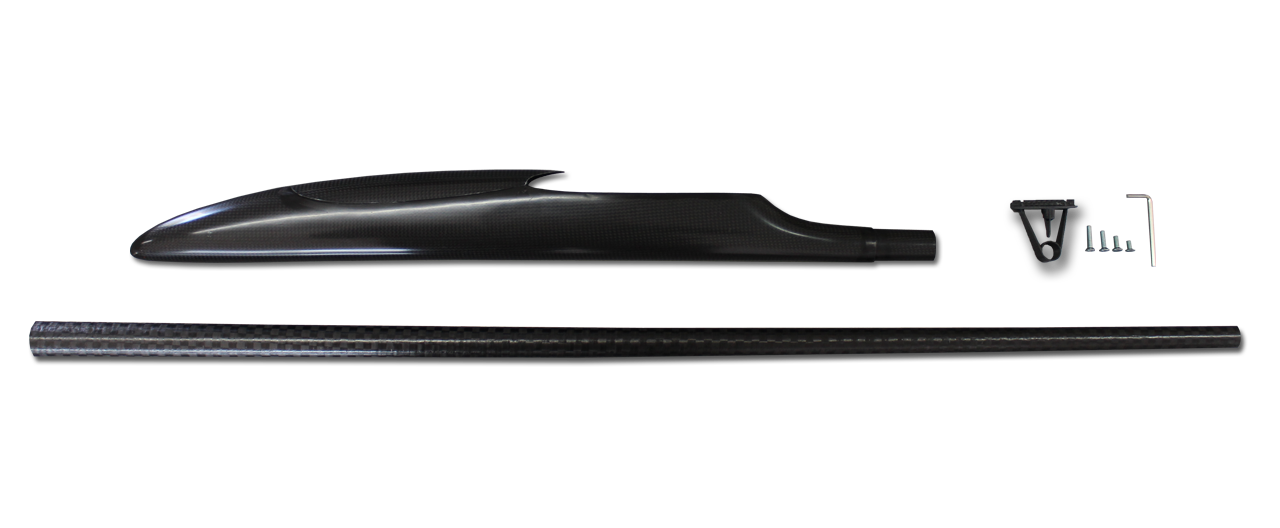

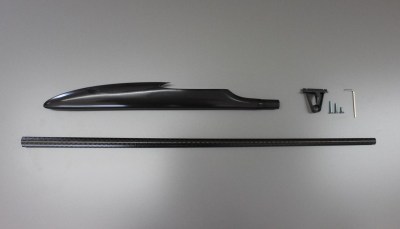

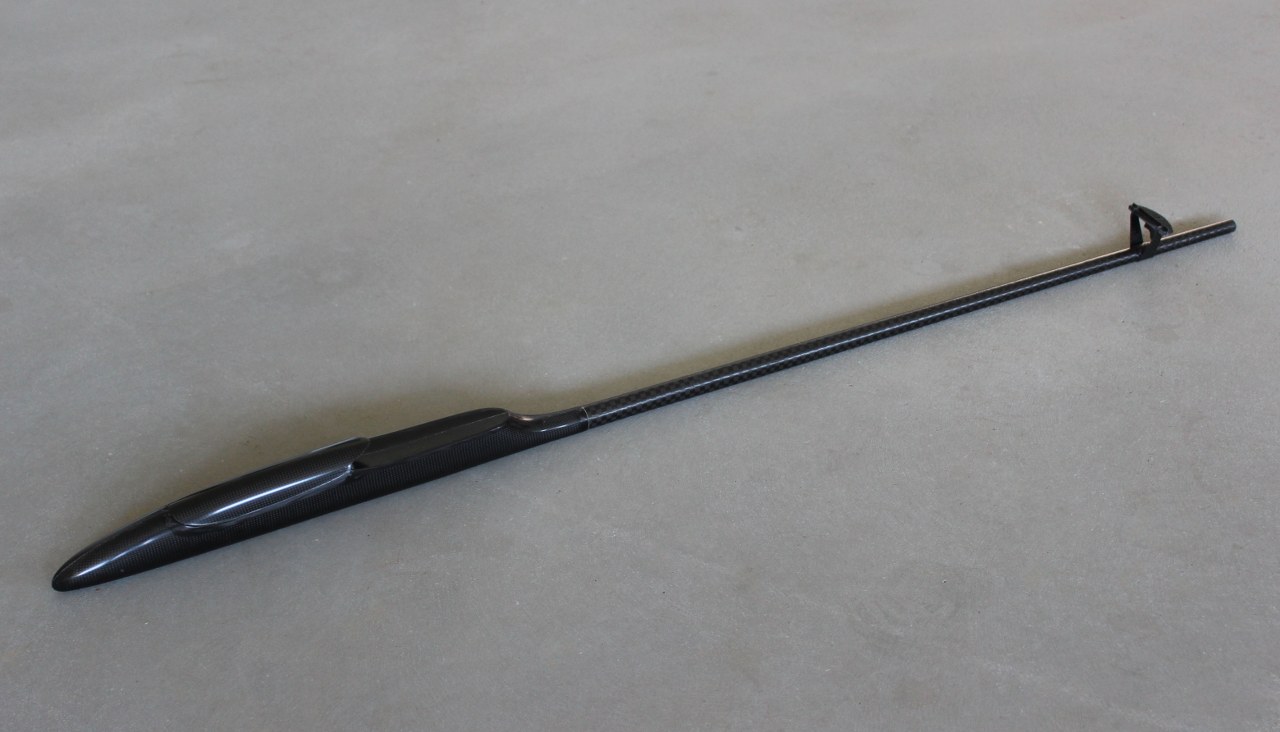

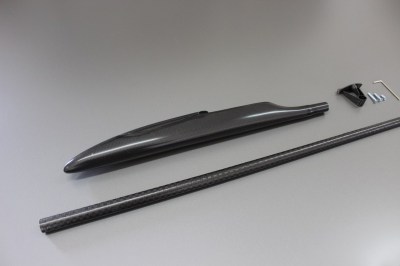

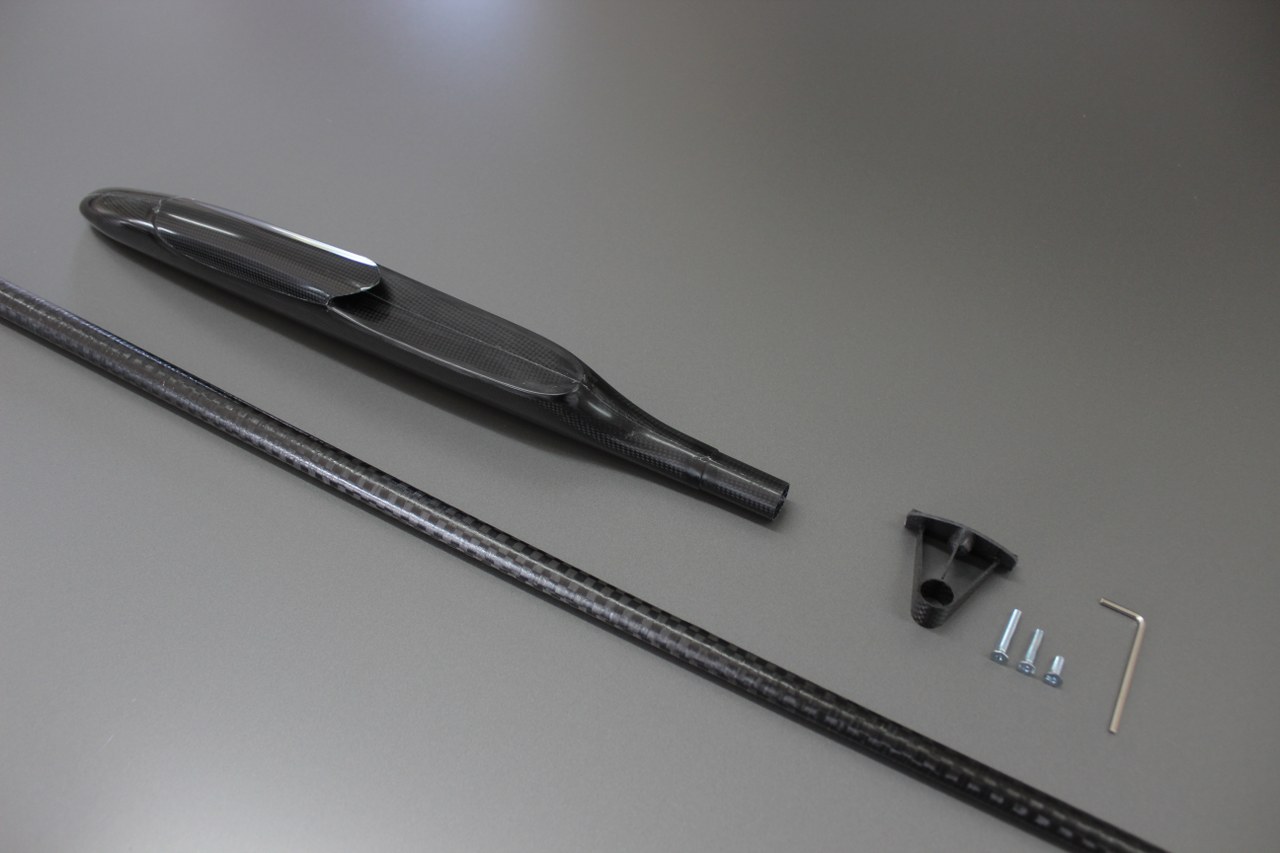

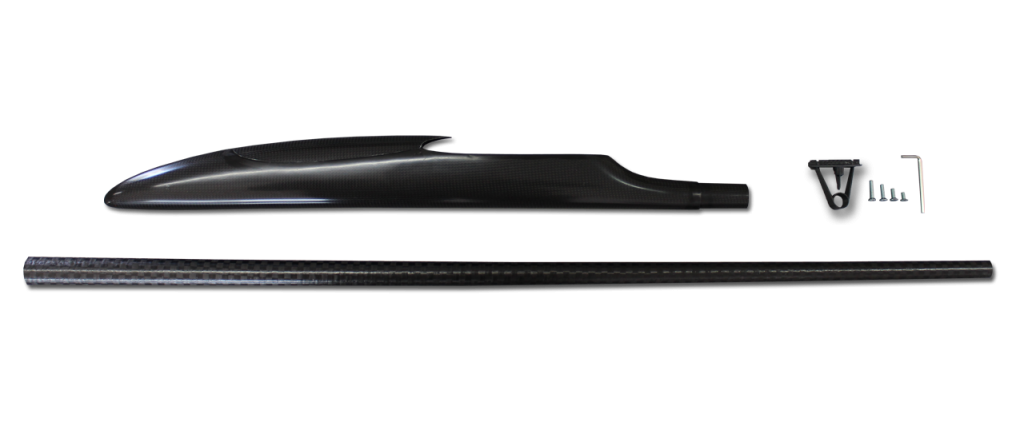

Set contains pure carbon pod #120, carbon tailboom and V-mount.
Set weights 65 grams / 2.29 oz.
Carbon boom is 700 mm / 27.55" long and weights 22g / 0.77 oz. Wide end: 19 mm / 0.74", narrow end: 12.5 mm / 0.49".
Carbon tail boom is made from several carbon types. Materials are strategically positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

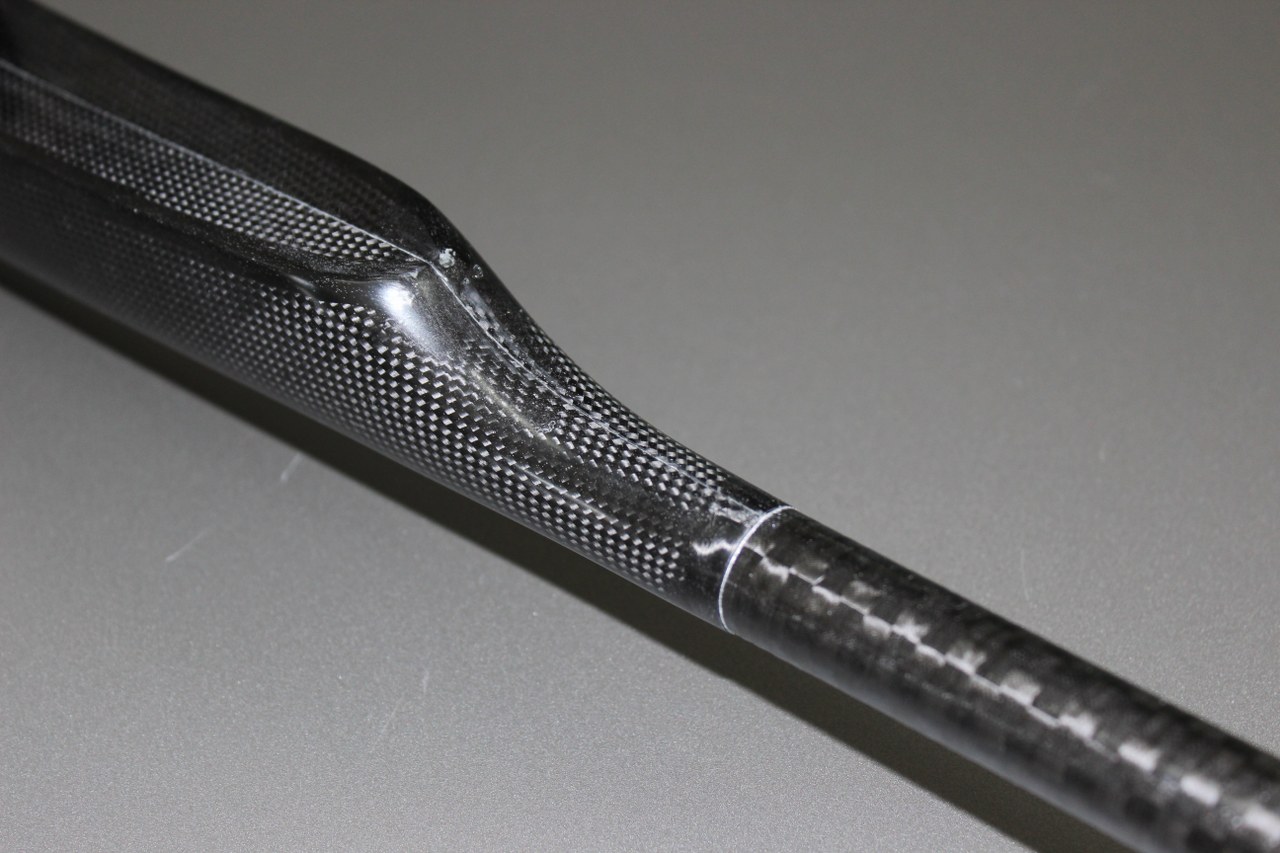

The pure carbon pod is completely made of composites (multiple types of materials), mainly fine aero 1K carbon fiber, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is strong enough to withstand even hardcore landings and other forces. The part where the tow hook and pylon are also reinforced, just like the top of the nose, so it can be landed roughly.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
Ideal for home builder, it can be used as replacement pod for other models.
NOTE: If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you.

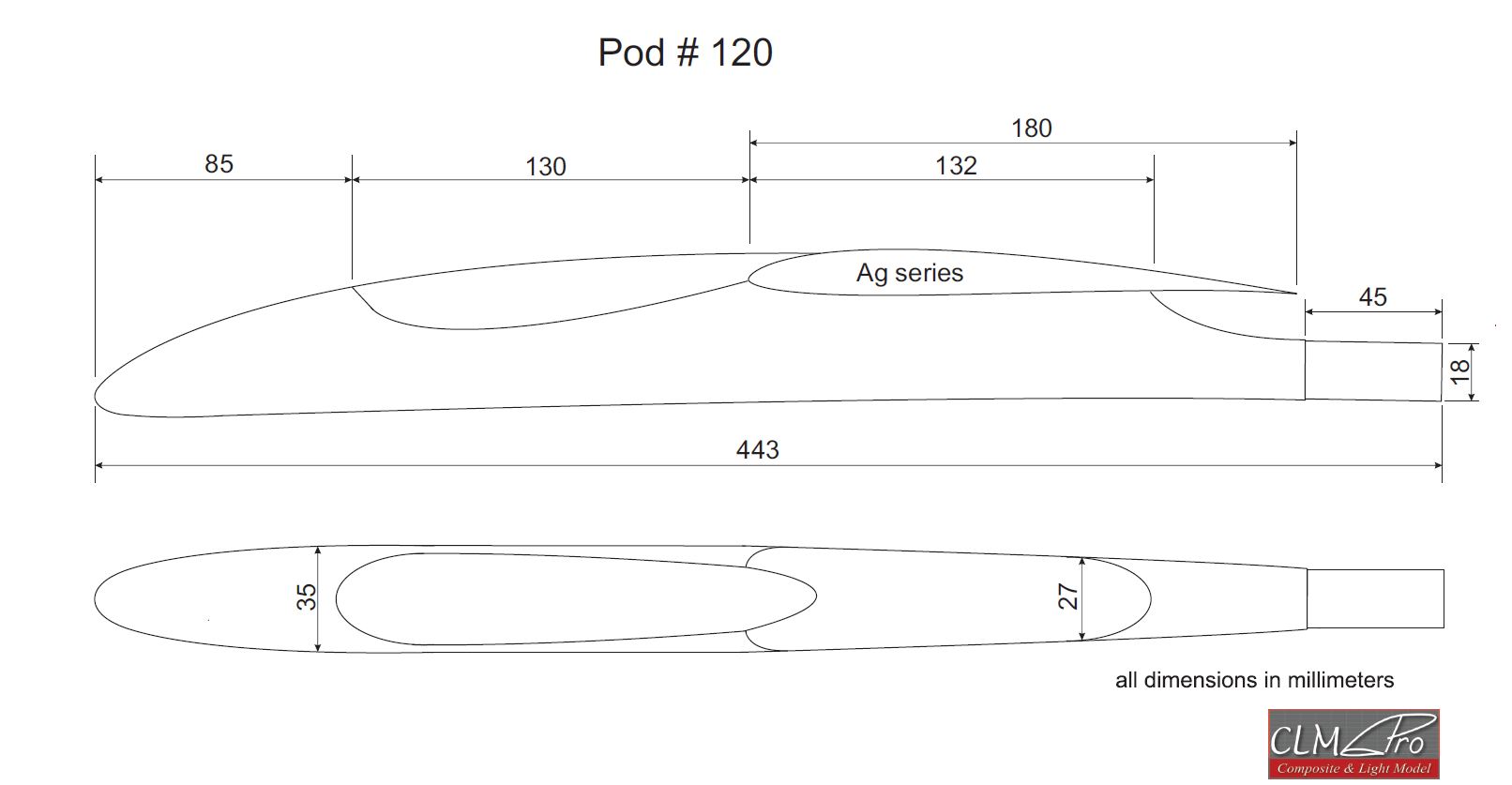

Pod Specifications |
|
Length |
433 mm / 17.44" |
Wing depth |
180 mm / 7.06" |
Profile |
AG series |
Boom diameter |
18 mm / 0.70" |
Dihedral angle |
0° |
Weight |
38 g / 1.34 oz |
Carbon Tailboom |
|
Length |
700 mm / 27.55" |
Wide End |
19 mm ID / 0.75" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
22 g / 0.77 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
